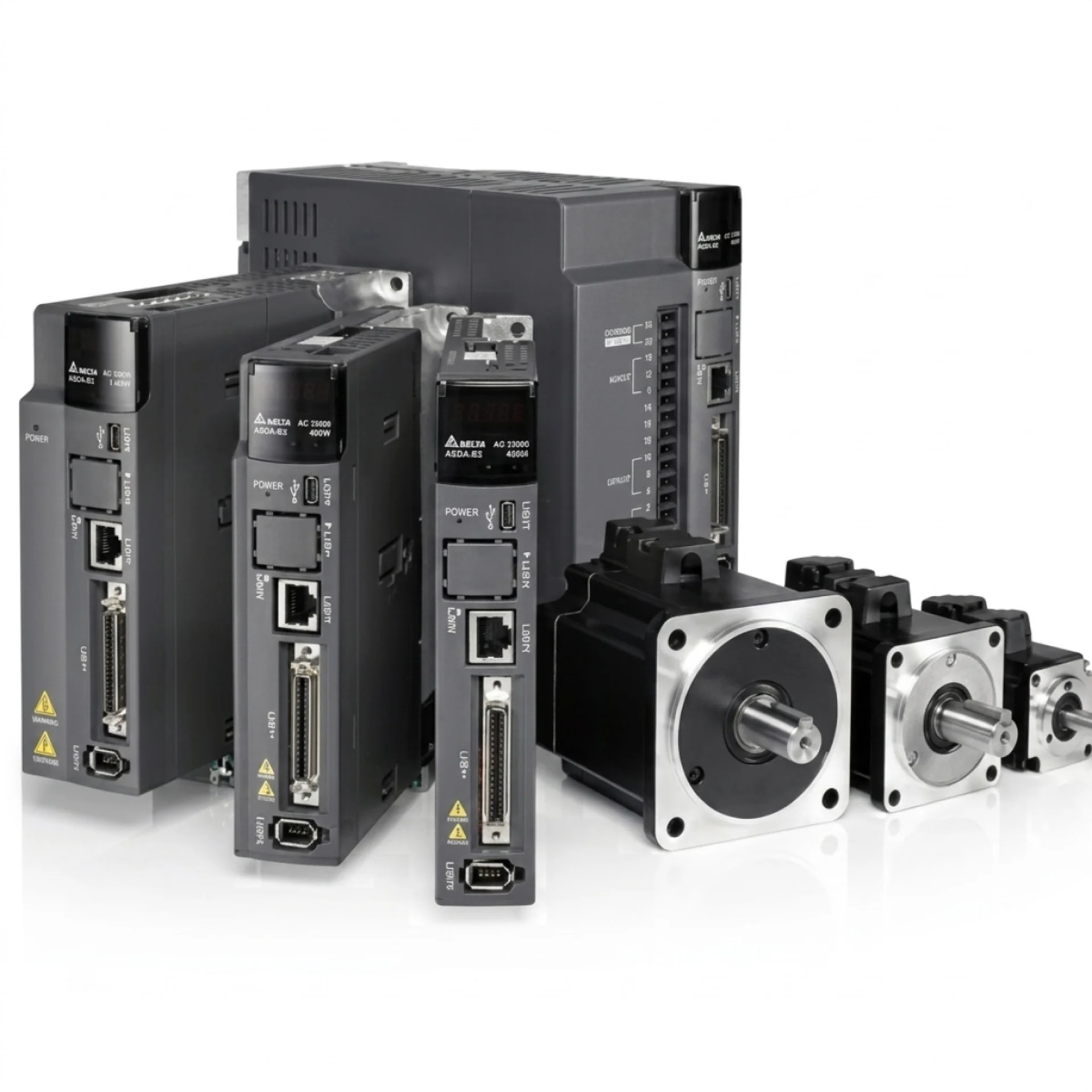

Otomatik üretim piyasası hızla geliştikçe, daha yüksek performans, hız, hassasiyet, bant genişliği ve işlevsellik ile servo ürünlere duyulan ihtiyaç büyük ölçüde artmaktadır. Endüstriyel üretim makineleri için hareket kontrol piyasasının gereksinimlerini karşılamak için Delta, çok fonksiyonlu, yüksek performanslı, enerji verimliliği ve kompakt tasarım gibi özelliklere sahip yeni bir High-end AC Servo Sistemi, ASDA-A3 Serisi sunuyor. .
Otomatik analiz ve sistem analizi için kullanıcı dostu bir arabirim olan ASDA-A3 Serisi, 3.1kHz bant genişliği sağlar ve 24 bitlik mutlak enkoder kullanır, yüksek tepki, hassas konumlandırma ve istikrarlı ve esnek performans gibi avantajlar sağlar. Ayrıca, seri, titreşim bastırması, sistem teşhisi ve enerjiyi yeniden üretebilen bir DC-veri yolu tasarımı gibi yeni işlevler eklemiştir. Delta’nın AC Servo Sistemi ASDA-A3 Serisi, müşterilerimizin makinelerinin hassasiyetini artırmaya ve mükemmel performansa ulaşmalarına yardımcı olmak için kapsamlı bir teknoloji ve çözüm sunuyor.
3.1 kHz Bandwidth |
|
Daha yüksek tepki süresi ve daha kısa yerleşim süresi verimliliği artırır |
|
|
24-bit Absolute Type Encoder |
|
– |
16,777,216 pulses/turns ensure precise positioning |
– |
Steady performance at low-speed enhances machining quality |
– |
Keeps motor’s position during power shortage |
|
Advanced Motion Control E-CAM & 99 sophisticated motion |
|
– |
E-CAM ve 99 gelişmiş hareket komutları ve segmentleri |
– |
Grafiksel kullanıcı arayüzü basit kurulum ve programlama sunar |
– |
Aritmetik işlem / karşılaştırma komutları mevcut |
– |
Hedef, konum ve hız komutları gibi genel hareket işlevlerİ |
– |
Superimposition, blending, and jump change motion commands provided |
|
Comprehensive Auto-Tuning Functions |
|
– |
Yerleşik otomatik ayarlama işlevi, kullanıcılar için engelleri azaltır ve daha az ayarlama gücü ile makine performansını optimize eder. |
– |
Panel tuş takımı veya yazılımı aracılığıyla servoların kolayca ayarlanması için adım adım kılavuz sihirbazı sağlar. |
|
|
Excellent Vibration Suppression |
|
– |
Advanced Notch Filter |
– |
Provides 5 sets of notch filters with up to 5 kHz tunable bandwidth |
– |
The filters can search resonance in a shorter time and set the attenuation level automatically, avoiding damage to machines |
|
Low Frequency Vibration Suppression Function |
– |
Suppresses vibration for machines with high flexibility, enhancing overall performance |
– |
Adopts a creative algorithm to eliminate the shaking of machines without slowing down its response and speed |
System Diagnosis Function |
|
– |
Measures the rigidity and damping coefficient of a machine and checks the consistency of the machine’s batch installation |
– |
Acquires the wear condition of a machine by comparing data from different time spans |
|
Multi-axis DC-bus Sharing Design |
|
– |
Collects regenerative energy and stabilizes DC-bus voltage for energy savings |
– |
Multiple servo drives with DC-bus sharing saves cost of resistors and installation space |
|
Slim and Compact Size Servo Drives and Motors |
|
– |
Drives and motors are 20% smaller and shorter than the ASDA-A2 Series, saving space |
|
Intuitive Software Interface |
|
– |
Tree-View index list and collapsible menu helps to access functions easily |
– |
Graphical interface provides set up functions and parameters, reducing setting time and failure |
|
