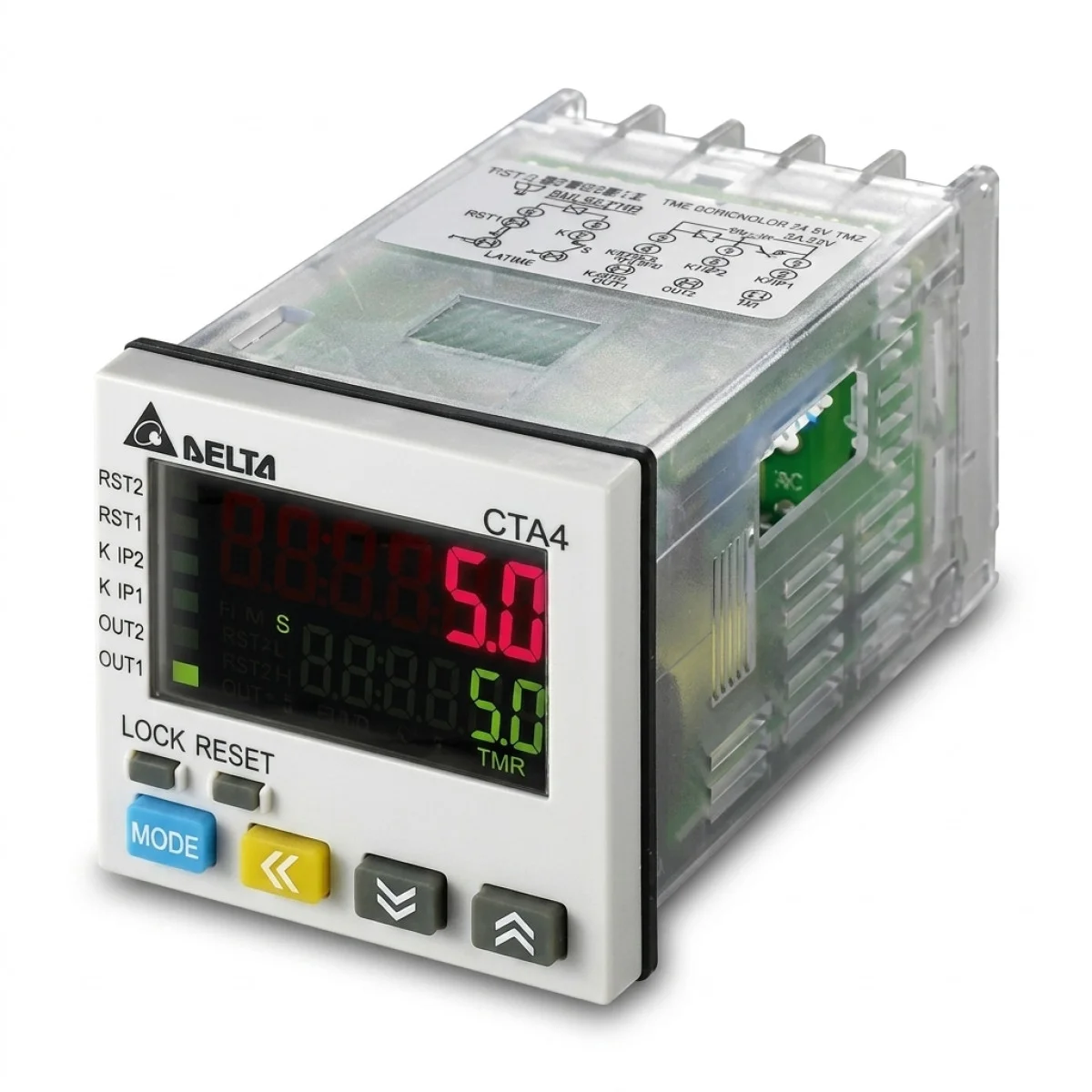

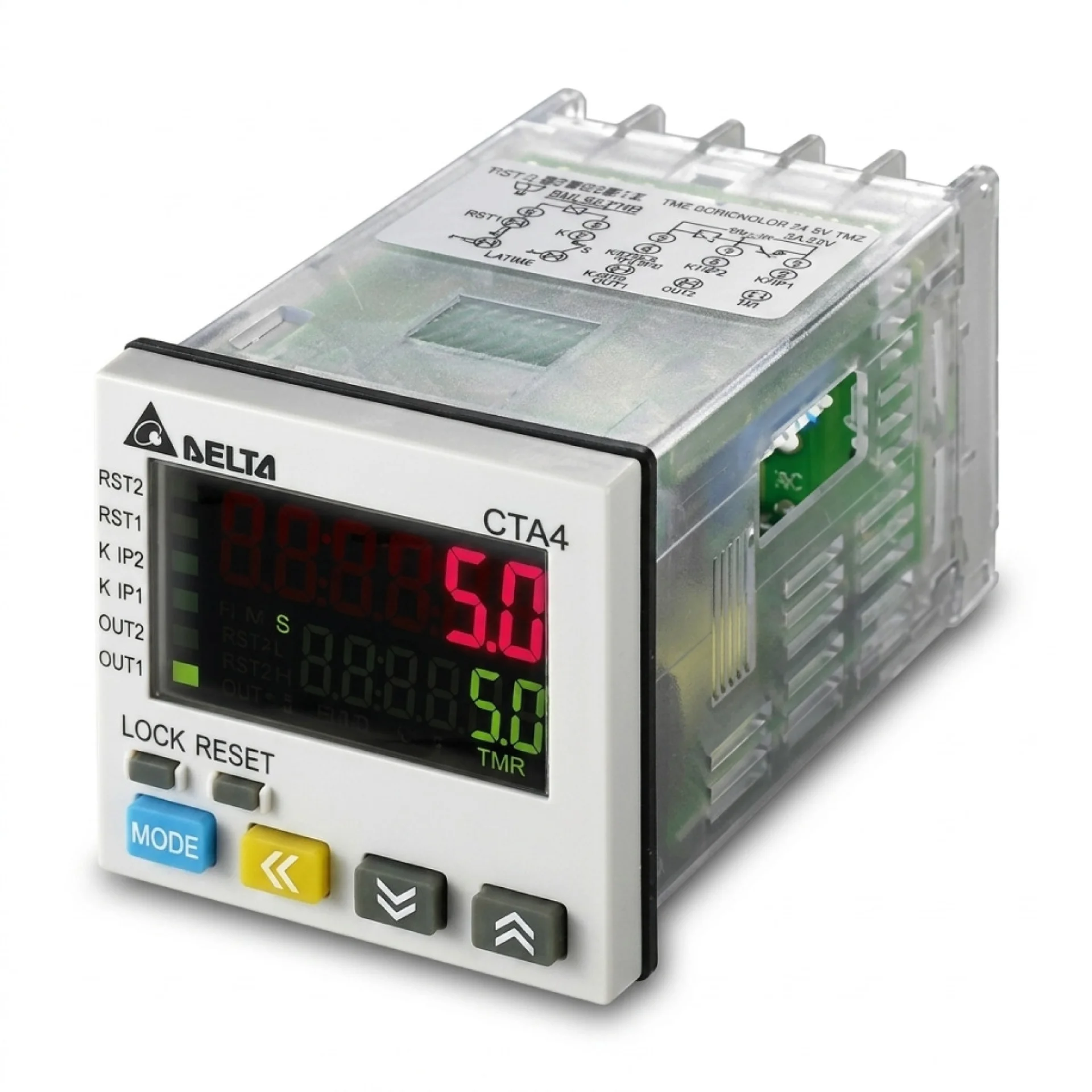

CTA Sayıcı ve Zamanlayıcılar

  CTA Timer/Counter/Tachometer is able to receive external input signals and calculate...
Ürün Kodu: Kategori: delta-sayici-ve-zamanlayici-urunleri Kullanma Kılavuzu: Ürüne ait PDF indirmek için üye olmanız gerekmektedir
Ürün Açıklaması



CTA Timer/Counter/Tachometer is able to receive external input signals and calculate the times of events, frequency and driving speed. CTA can be applied to batch counting, total counting, length measurement, position control, accurate timing, rotation speed and so on.

CTA Timer/Counter/Tachometer features easy and handy parameter settings and tuning and are certified by international standards CE and UL



Panel size: 48mm x 48mm


Power input: 100~240VAC, 50/60Hz or DC24V


Range of input voltage: 85%~110%, rated voltage or DC21.6V~26.4V


Power consumption: less than 10VA or 5W


External power supply: 12VDC ± 10%; 100mA


Display: Double-line 6-digit LCD display


NPN input: ON impedance 1K ohm max. ON residual voltage: 2V max.


PNP input: high level: 4.5~30VDC; low level: 0~2VDC


Dielectric strength: 2,000VAC; 50/60Hz for 1 minute
Teknik Özellikler
