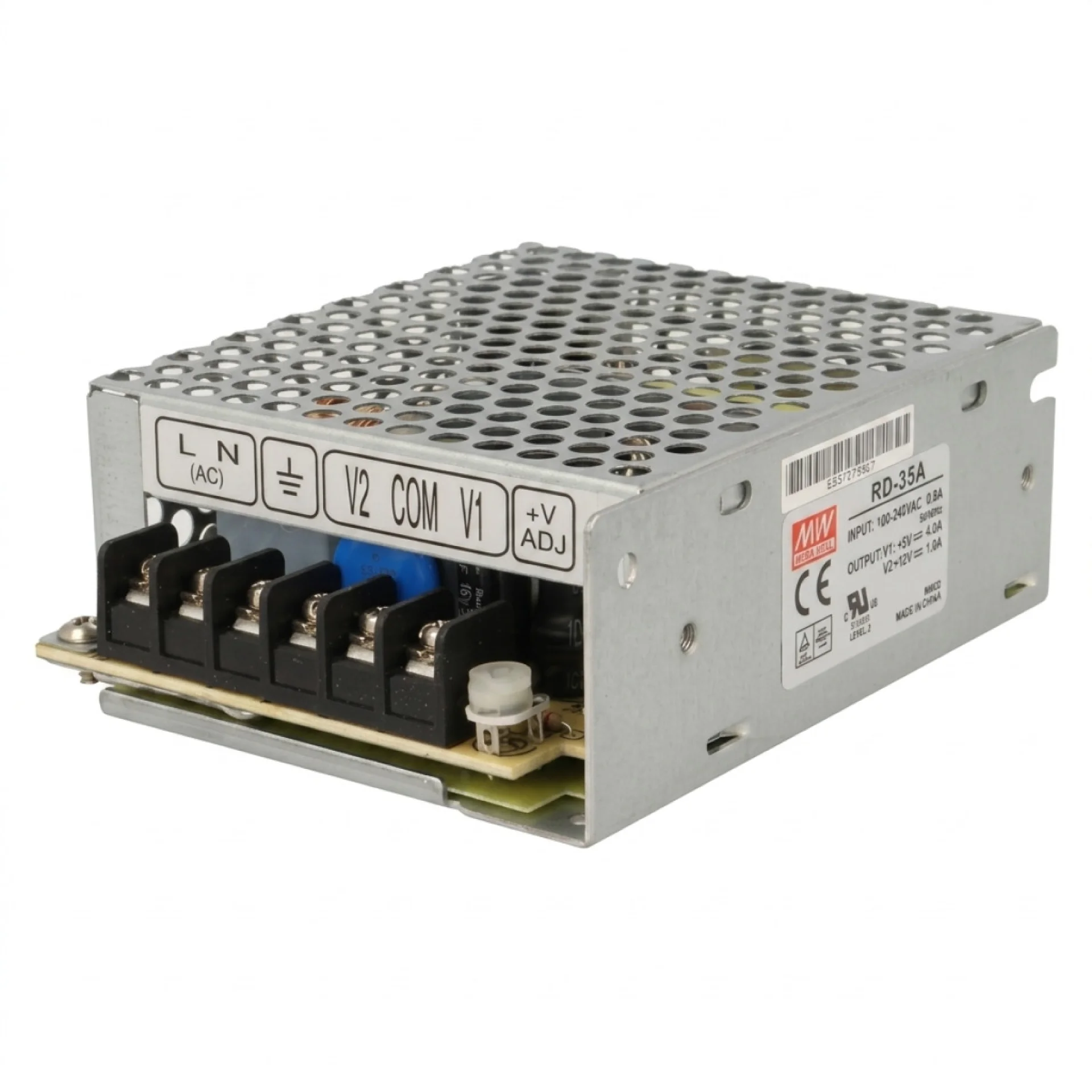

meanwell RD Serisi Çok Çıkışlı (Kutulu Tip)

Teklif İste

RD Serisi Çok Çıkışlı (Kutulu Tip)

Ürün Kodu Güç Çıkış Vdc Çıkış-1 Çıkış-2 Çıkış-3 Çıkış-4 Boyut RD-35A 35W 5/12V 5V/0.3-4A 12V/0.2-1A --- --- 99x82x36mm RD-35B 35W 5/24V 5V/0.3-2.2A 24V/0.2-1A --- --- 99x82x36mm RD-50A 50W 5/12V 5V/0.3-6A 12V/0.3-2A --- --- 99x82x36mm RD-50B 50W 5/24V 5V/0.3-4A 24V/0.2-1.4A --- --- 99x82x36mm RD-65A 65W 5/12V 5V/0.3-6A 12V/0.2-3A --- --- 129x98x38mm RD-65B 65W 5/24V 5V/0.3-4A 24V/0.2-2A --- --- 129x98x38mm RD-85A 85W 5/12V 5V/2-8A 12V/0.3-4A --- --- 129x98x38mm RD-85B 85W 5/24V 5V/2-8A 24V/0.3-2A --- --- 129x98x38mm RD-125A 125W 5/12V 5V/2-7.7A 12V/0.5-7.7A --- --- 129x98x38mm RD-125B 125W 5/24V 5V/2-4.6A 24V/0.4-4.6A --- --- 129x98x38mm RD-125-2412 133W 24/12V 24V/0.5-3.7A 12V/1-3.7A --- --- 129x98x38mm RD-125-2448 144W 24/48V 24V/0.5-2A 48V/0.2-2A --- --- 129x98x38mm RD-125-4812 138W 48/12V 48V/0.3-2.3A 12V/1-2.3A --- --- 129x98x38mm RD-125-4824 144W 48/24V 48V/0.3-2A 24V/0.3-2A --- --- 129x98x38mm RD-125-1224 133W 12/24V 12V/1-3.7A 24V/0.4-3.7A --- --- 129x98x38mm RD-125-1248 138W 12/48V 12V/1-2.3A 48V/0.2-2.5A --- --- 129x98x38mm

Ürün Kodu: Kategori: guc-kaynaklari

Açıklama
Teknik Özellikler

Ürün Açıklaması

Ürün Kodu	Güç	Çıkış Vdc	Çıkış-1	Çıkış-2	Çıkış-3	Çıkış-4	Boyut
RD-35A	35W	5/12V	5V/0.3-4A	12V/0.2-1A	---	---	99x82x36mm
RD-35B	35W	5/24V	5V/0.3-2.2A	24V/0.2-1A	---	---	99x82x36mm
RD-50A	50W	5/12V	5V/0.3-6A	12V/0.3-2A	---	---	99x82x36mm
RD-50B	50W	5/24V	5V/0.3-4A	24V/0.2-1.4A	---	---	99x82x36mm
RD-65A	65W	5/12V	5V/0.3-6A	12V/0.2-3A	---	---	129x98x38mm
RD-65B	65W	5/24V	5V/0.3-4A	24V/0.2-2A	---	---	129x98x38mm
RD-85A	85W	5/12V	5V/2-8A	12V/0.3-4A	---	---	129x98x38mm
RD-85B	85W	5/24V	5V/2-8A	24V/0.3-2A	---	---	129x98x38mm
RD-125A	125W	5/12V	5V/2-7.7A	12V/0.5-7.7A	---	---	129x98x38mm
RD-125B	125W	5/24V	5V/2-4.6A	24V/0.4-4.6A	---	---	129x98x38mm
RD-125-2412	133W	24/12V	24V/0.5-3.7A	12V/1-3.7A	---	---	129x98x38mm
RD-125-2448	144W	24/48V	24V/0.5-2A	48V/0.2-2A	---	---	129x98x38mm
RD-125-4812	138W	48/12V	48V/0.3-2.3A	12V/1-2.3A	---	---	129x98x38mm
RD-125-4824	144W	48/24V	48V/0.3-2A	24V/0.3-2A	---	---	129x98x38mm
RD-125-1224	133W	12/24V	12V/1-3.7A	24V/0.4-3.7A	---	---	129x98x38mm
RD-125-1248	138W	12/48V	12V/1-2.3A	48V/0.2-2.5A	---	---	129x98x38mm
